6 Colors CI Type Flexo Printing Machine XHCI-A61200 manufacturer from China Hangzhou Xianghuai Machinery Technology Co.,LTD

Qty (Set/Sets)	Unit Price (140000.0~400000.0 USD)
1	140000
1 +	400000
Trade Term:	FOB
Payment Terms:	T/T,L/C,D/A,D/P
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: XHCI-A61200

Production Capacity: 15 sets/month

Delivery Date: 100 days after receive the ...

Printing material: Film Paper Cup .carton ,pap...

Printing colors: 6 colors

blade: chamber doctor blade

Means of Transport: Ocean,Land

Packing: Wooden cases or stretch fil...

Type: Central Drum Flexo Press

Printing speed: 50-200m/min

Anilox roller: ceramic anilox roller

Max print length: 1100mm

6 colors flexo printing machine CI Type Printing Machine
Suitable roll materials BOPP, PVC, PE, Breathable PE, NY, Paper\Non-woven fabric and so

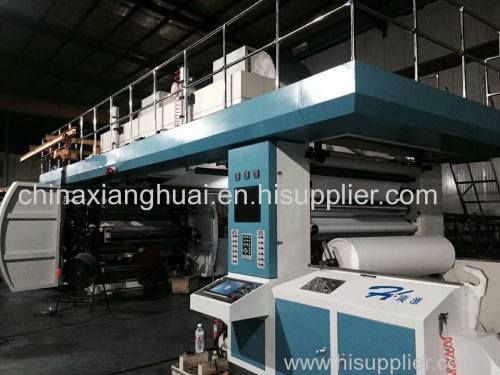

6 Colors CI Type Flexo Printing Machine

1). Features:

1. Ink anilox roller: ceramic anilox ink roller, lines 100PLI ~ 1000PLI, high speed dot reproduction rate, screen printing, structured, three-dimensional sense of strong, registering accurately

2. Ink: adopt automated circulation system, transport ink adopt single small motor;

3. Speed control: adopt Japan frequency speed control, small fluctuations running;

4. Unwinding correcting: adopt high-grade automated sensitive-photocell correcting system;

5. Unwinding and winding ways: adopt magnetic automatic tension control;

6. Ink input pattern : adopt unique doctor blade, and equipped with automatic ink pump unit;

7. Up and down version: adopt hydraulic automatic landing version;

8. Smooth roller: adopt special steel processing, and after special treatment, with10um plating hard chromium protective layer thick, beat within 0.02mm;

9. Led guid roller: adopt a small semi-sealed bearings produced in Japan, with static balance and dynamic balance treatment, hard oxidation treatment, small resistance, small beating;

10. Machine control system: PLC devices, starting, stopping, running, line adopts PLC control, automation and better equipment and more humane. (can add voice prompts system)

2). Suitable material:

Kraft paper: 40 ~ 350g/m2, single-sided coated paper: 30 ~ 350g/m2, copy paper: 15 ~ 350g/m2, firecrackers and paper: 40 ~ 350g/m2, paper money and incense: 25 ~ 350g/m2, silicone paper : 50 ~ 350g/m2, coated paper: 30 ~ 350g/m2, dust-free paper: 25 ~ 350g/m2, release paper: 40 ~ 350g/m2composite paper, 30 ~ 350g/m2

Non-woven :15-120 grams, woven :15-500 g, PVC: 10 ~ 120μm, OPP: 10 ~ 100μm, BOPP: 10 ~ 100μm, PE: 15 ~ 150μm, NY: 10 ~ 120μm, PET: 10 ~ 100μm, CPP: 10 ~ 100μm

3)Main parameters

Model	XHCI-A61300mm CI type flexo printing machine
central drum cylinder+gear	Φ1300mm
Width of central drum cylinder	1250mm
Width of Aluminum guide rollers	1250mm
Max width of material	1180mm
Max printing width	1160mm
Printing colors	6 colors(one side printing 6+0)
Max machinery speed	200m/min
Max printing speed	180m/min
Printing precision	+-0.15mm
ink	Water-soluble ink or alcohol soluble ink.
Printing length	350～800mm
Thinckness of printing plate	1.14mm or 1.7mm
Thickness of Adhesive Tape	0.55mm or 0.38mm
Diameter of winding	Φ1000mm
Winding shaft	Air shaft
Paper cores of unwinding	3 inch
Winding shaft	aif shaft
Paper cores of winding	3 inch
Colour register precision	±0.15mm
Tension control	0-500N/M
Heating way	Electric heating(heating power56Kw)
Max temperature of the oven.	Max.50-100℃(indoor temperature20℃)
Total power	86Kw( actual use about 60℅)
Weight	About 13T
Demension	about 9200mm×3500mm×3800mm

Printing Samples

Our Services

6 Colors CI Type Flexo Printing Machine

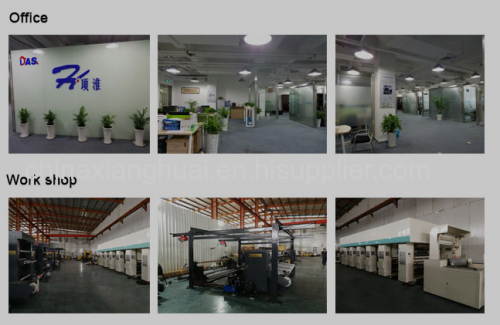

Company Information

Hangzhou XiangHuai Machinery Technology Co., LTD. was founded in 2008, is a science and technology enterprise specialized in the production of flexible packaging equipment and related equipment, R & D, manufacturing flexographic printing machinery and equipment.Our factory covers an area of 30000 square metres and more than 200 workers. To help you grow and build your own brand in your market is our target.
